GPS & CAN Kit

€244 / each

Fleet management
  • Delivery: 4-6 weeks

The GPS and CAN kit is designed for fleet managers to understand information about a vehicle’s location, stops, speed, fuel consumption, engine speed and pressure in the brake circuit. With the GPS and CAN kit, fleet managers can monitor vehicle performance and driver behaviour and understand areas for improvement amongst operations.

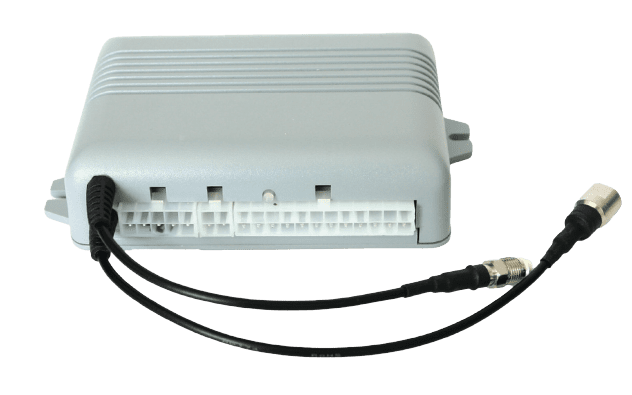

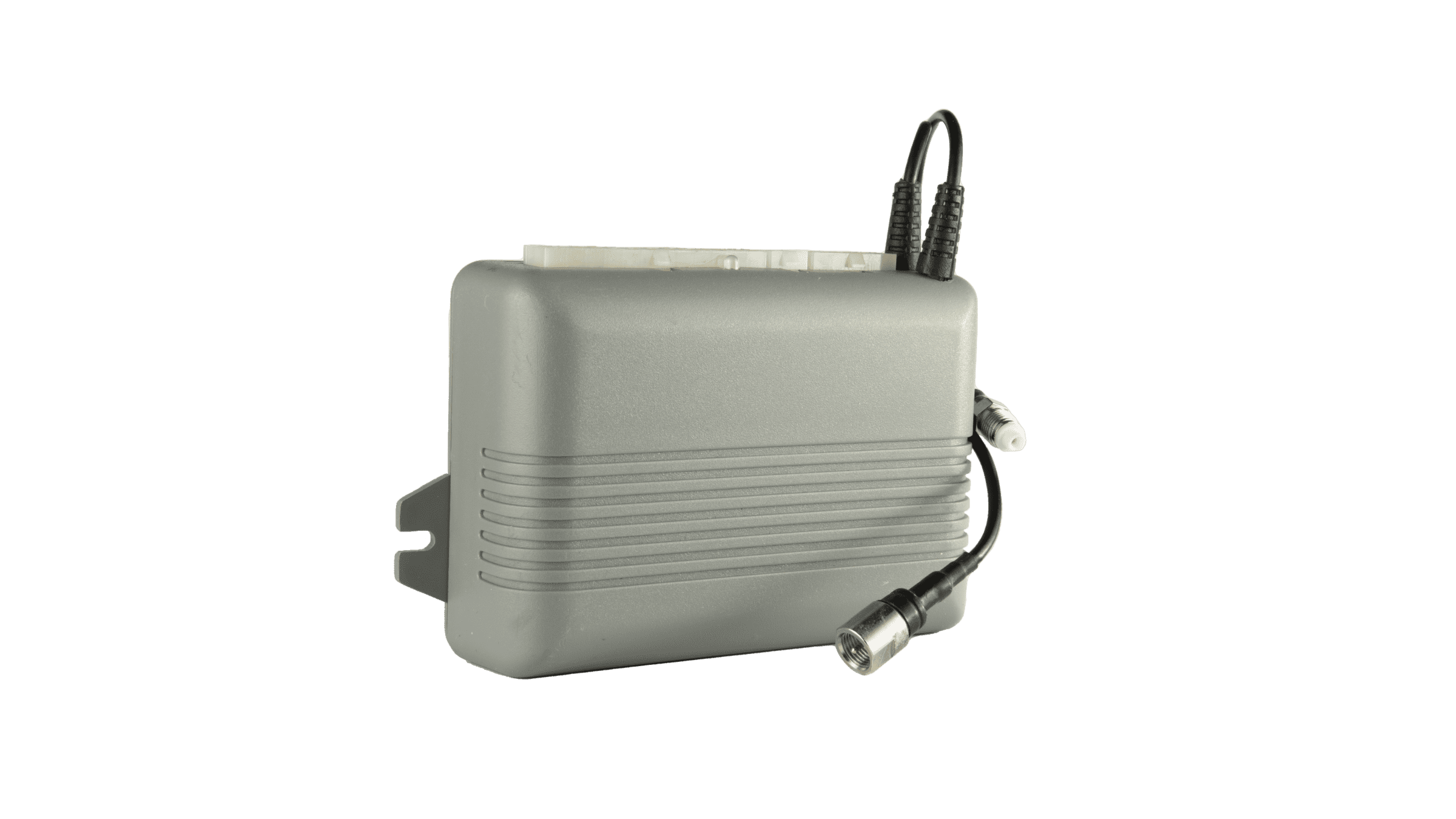

GPS Tracker

The key element of the system is a GPS tracker, which saves the object location, speed, direction of movement, and information from sensors and interfaces. The data saved in the internal memory of the GPS tracker are transferred to the monitoring system. This information allows for making reports on routes and stops.



  • Supports following standards: GPS/Glonass/Galileo and GSM / GPRS,

  • recording data with a given time interval, the possibility of looping the data buffer,

  • option to enable remote data recording mode,

  • possibility of remote configuration and software update.



It is fixed in the vehicle and powered by a battery. If the vehicle is equipped with additional recording equipment, the recorded data will also be sent to the server by the controller. The controller is protected against:



  • cutting off power supplied by the vehicle battery - the controller has its own battery to ensure its continuous operation, and

  • loss of GSM signal - the controller has an internal memory, which saves the collected data.

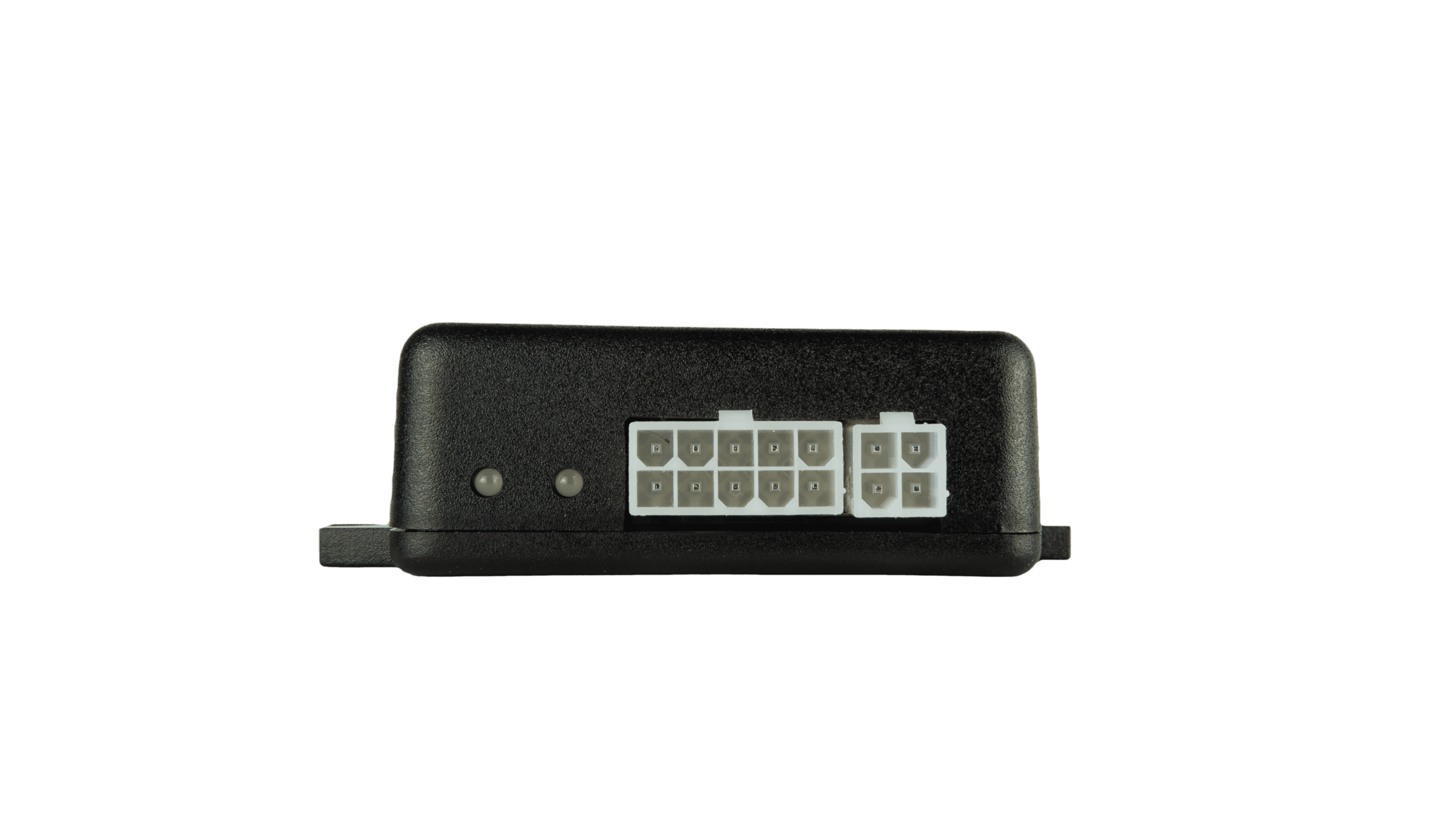

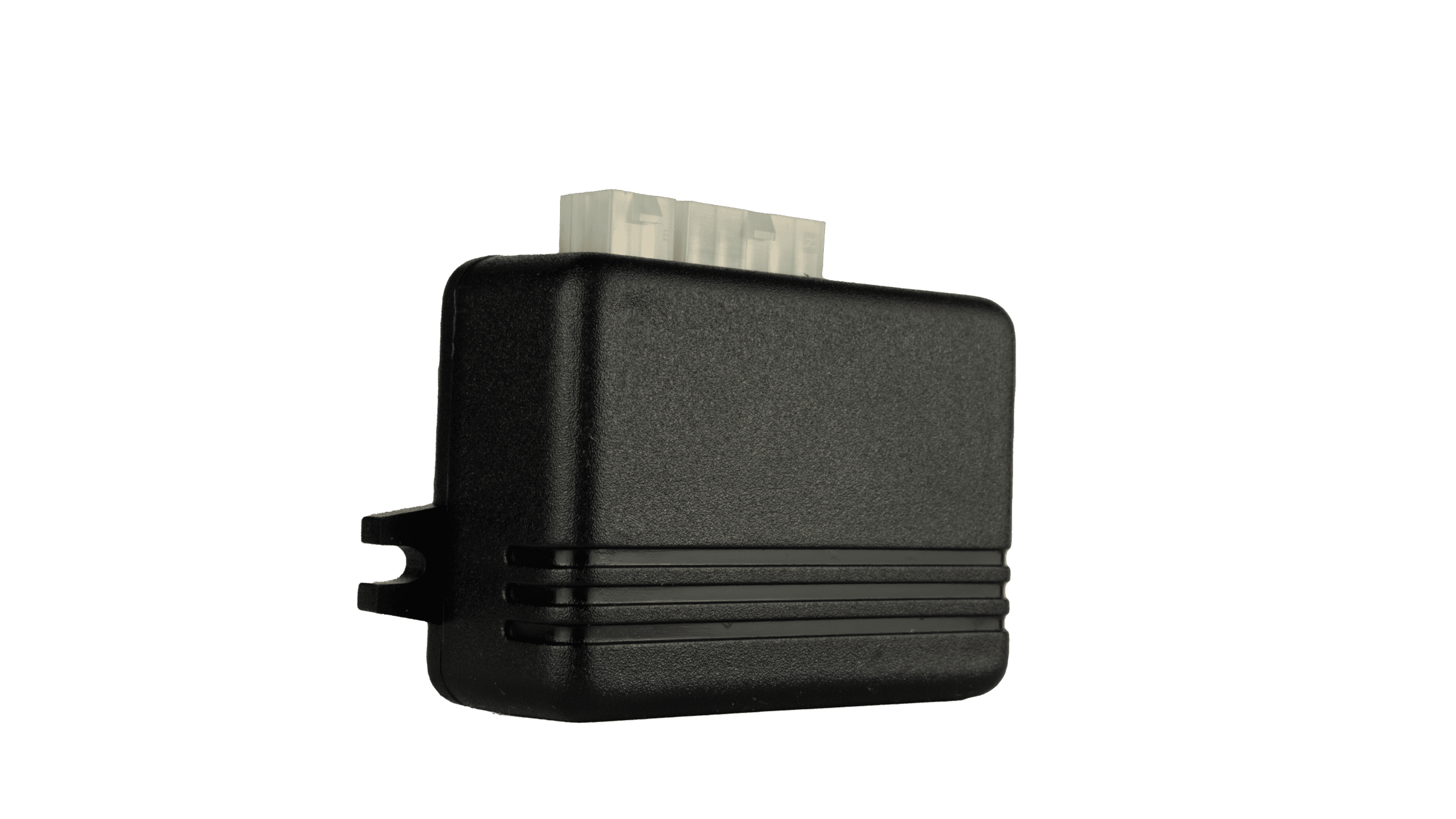

CAN interface

The CAN interface is used to read data directly from the vehicle CAN bus, which is a serial network for transmitting digital data between electronic devices in the vehicle. Some of the transmitted information is the data about the fuel level in the vehicle tank. The interface may read also other parameters e.g.: odometer, total fuel consumption, engine speed, the pressure in the brake circuit.

Downloads
Specification
Power Supply
10 – 15VDC / 20 – 30VDC
Inputs
Digital - 8 / Analog - 4 / Counting - 4 / Logging - 2
Outputs
Relay - 1 / Current output - 3
Communication Port
RS 485
Dimensions
135x85x35mm
Working Temperature
-30°C to +85°C
Humidity
40 to 95% RHw
Housing Protection Marking
IP40
