Track the position and speed of vehicles with the basic GPS tracker.

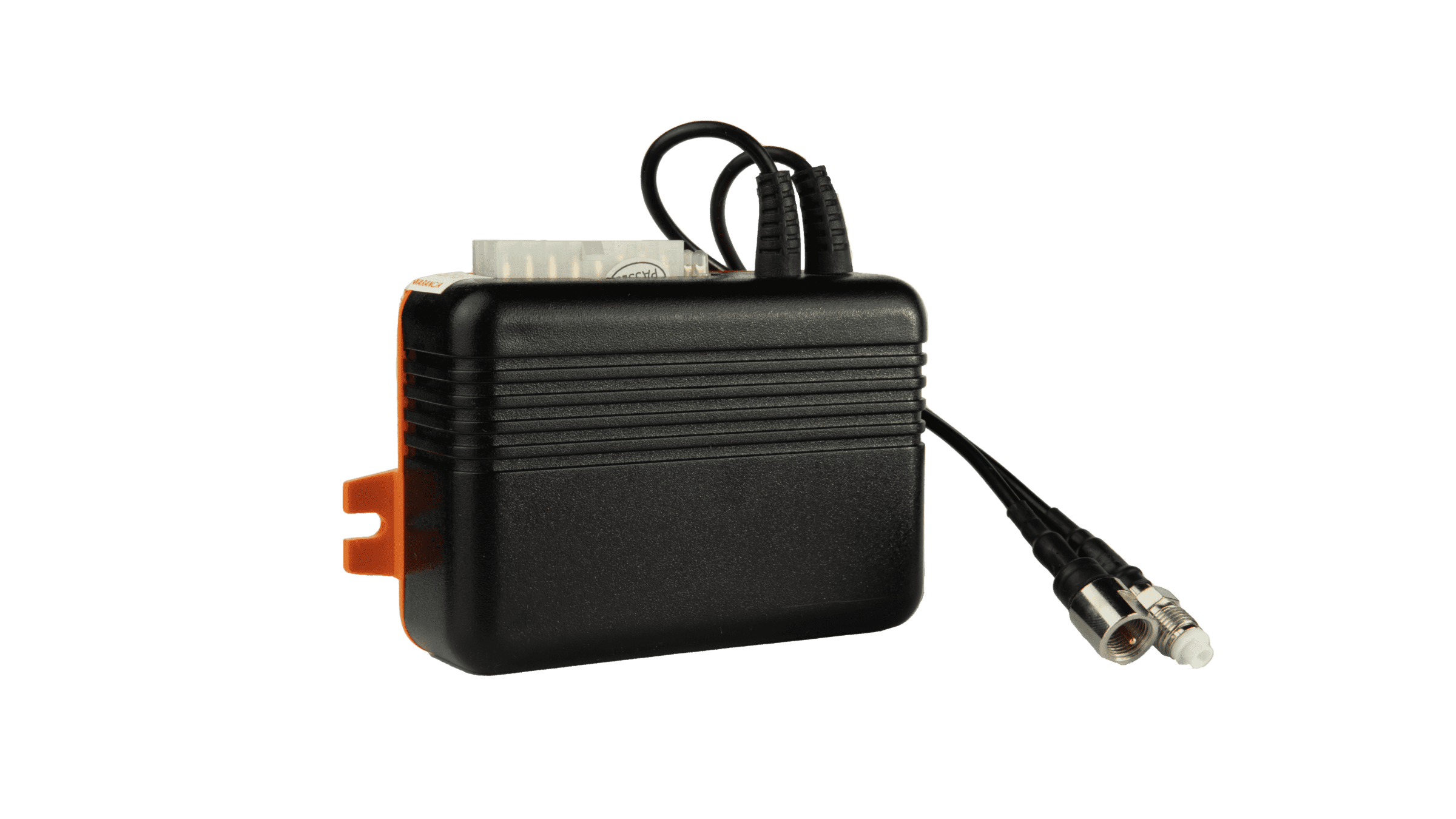

The Basic GPS Tracker is designed for permanent installation in vehicles. Its task is to remotely locate the vehicle using GPRS transmission. In addition, the Basic GPS Tracker is used to register and transmit selected vehicle parameters based on data from the GPS / GLONASS system, data sent from the vehicle's CAN bus and from the digital and analog inputs available in the controller, as well as the 1-Wire and RS-bus 485.

The position and speed of the vehicle are determined using the GPS system. This position is remembered in the controller's memory - the so-called "Black box". The "black box" is read using the GSM / GPRS link.

The device has a built-in GSM telephone module. With its help, through a permanent GPRS connection, the GPS locator communicates with the base station, and then with the server, providing information about its location and input states.

The Basic GPS Tracker controller also has an integrated CAN module. With its help, after connecting to the CAN bus of the vehicle, it is possible to send and record parameters such as engine speed, odometer reading, pressure on the accelerator pedal, fuel consumption, fuel level and others.

Key Features

microprocessor control,
non-volatile data memory of DataFlash type,
modern construction,
small dimensions,
internal emergency operation battery.

Downloads

Basic GPS Tracker Technical Specifications

06.06.2022

Specification

Supply Voltage

8V – 36V [DC]

Average current consumption during operation, with a charged internal battery

with 12 V power supply: 40[mA] / with 24 V supply: 40[mA]

Maximum current consumption, with a discharged internal battery

200[mA]

Current consumption in "standby mode" (standby mode - work with the vehicle's ignition off)

<10mA/12V

Internal battery

3,7 [V] 1100 [mAh] / Option 3,7 [V] to 4000[mAh]

Inputs universal digital - analog, working in one of 2 modes: digital input (binary), - L status <4V state H> 6V analog input, range 0-13.2V, resolution 3.3mV (12 bits)

Inputs universal digital - analog, working in one of 2 modes: - digital input (binary), L status <4V state H> 6V analog input, range 0-33V, resolution 8.25mV (12 bits)

Inputs universal digital - counting, working in one of 2 modes: digital input (binary), L status <4V state H> 6V counting input: 10V, 1kHz

Inputs digital input (binary) L status <4V state H> 6V

Inputs CAN bus input (2.0A and 2.0B)

Inputs RS-485 bus input (ELTE RS protocol)

Inputs 1-Wire bus input

Outputs N-type output - (I<250mA, U<36V)

Black box capacity

up to 128000 or 256000 entries

Analog input impedance

300 [kΩ]

Digital inputs impedance

100 [kΩ]

Dimensions

90,5 (107 with handle) x 63,7 x 33 [mm]

Working Temperature

from -30 to +85 [ ̊C]

Humidity (non-condensing)

from 40 to 95% RHw

Housing protection degree

IP40
