Manual Reader

USD $1,049.99 / each

Asset management
  • Delivery: 4-6 weeks
  • Maximum order: 100 pcs

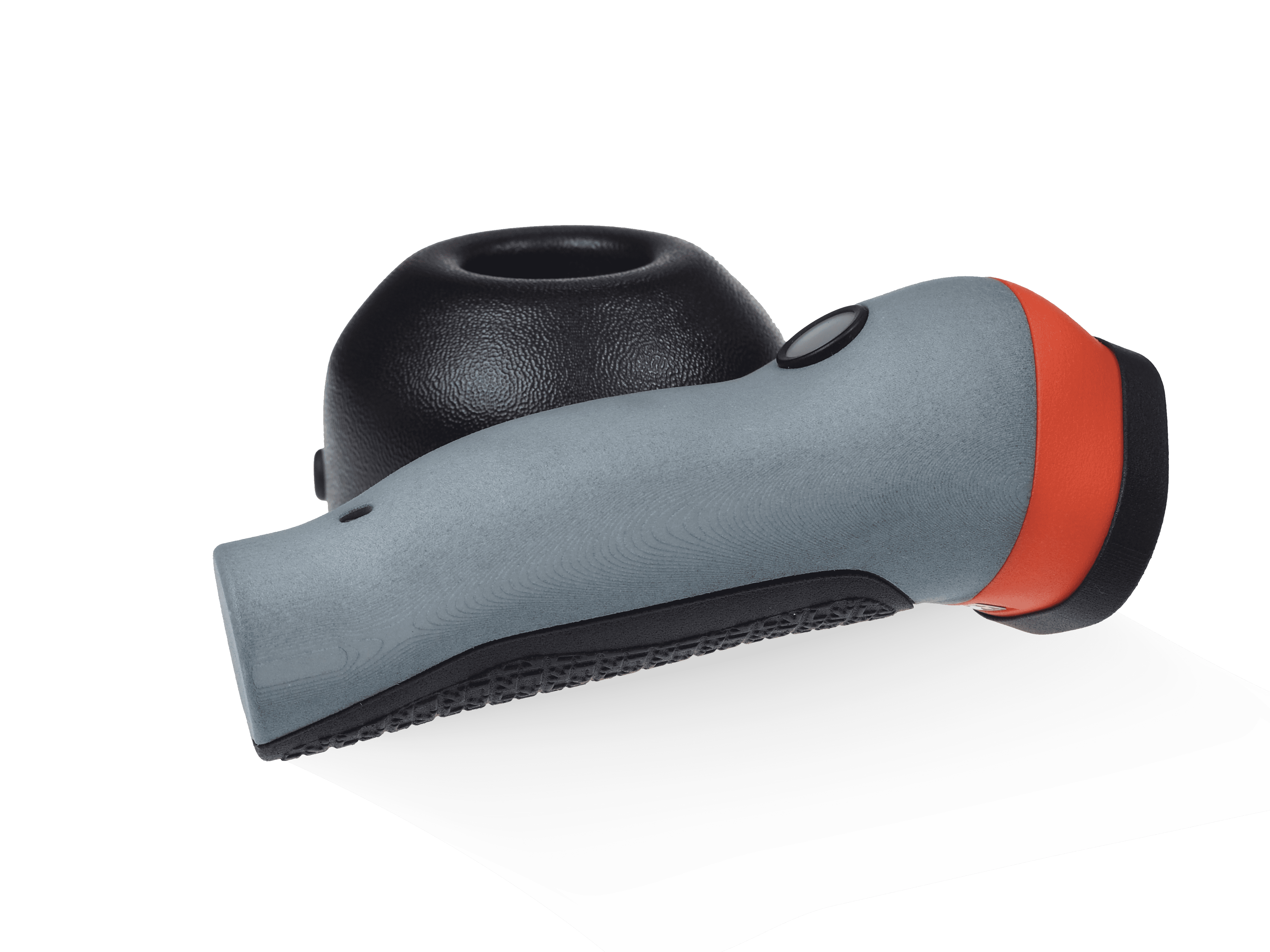

Manual Reader

The Manual Reader brings a new level of appliance to the identification technology/system. It contains both an RFID reader and a 1D/2D barcode scanner. This means that the Manual Reader can be used as a 3 in 1 device to scan and read RFID tags, QR codes and barcodes on your containers.



The Manual Reader includes a docking station, which is connected directly to the GPS controller in the vehicle. It is equipped with a wireless charger, interface of wired communication with the recorder and wireless communication with the reader, and housing with the socket for charging the reader.



The Manual Reader itself is a portable, wireless reader consisting of:



  • Rechargeable battery,
  • Wireless integrated charger with thermal shutdown and overcurrent protection,
  • Temperature monitoring and fault detector,
  • Microcontroller,
  • Accelerometer,
  • Wireless communication module 2,4GHz,
  • FDX reader module,
  • HDX reader module,
  • 1D and 2D barcode reader module,
  • Optical indication module,
  • Acoustic indicator,
  • Hermetic housing.
Downloads
Specification
DOCKING STATION
Supply voltage
10 - 30V
Communication interface
RS485 or Bluetooth
Communication protocol
ETP (connection to SMOK GPS controller), EL-protocol
Wireless charging in accordance with QI
Radio communication range
2,4GHz 100 m (in opened space)
Dimensions
ø 105 x 65 [mm]
WIRELESS READER
Battery internal capacity
2.5Ah
Types of readable transponders
FDX-A, FDX-B, HDX
Frequencies
125kHz, 134.2kHz
Data buffer
1000 transponder numbers (automatic read-out while in range)
Wireless connection module frequency
2,4GHz
Optical indication of reader mode
RGB LEDs
Acoustic indicator
Temperature range
-20 to +60
Protection class level
IP67
Dimensions
ø 65 x 170 [mm]

We are here to help!

Need help deciding what hardware is best for your waste management needs? Contact our sales team today.

Related products

Keep track of your waste containers with the long-range RFID Transponder Bin Tag.

Keep track of your waste containers with the short-range RFID Transponder Bin Tag.

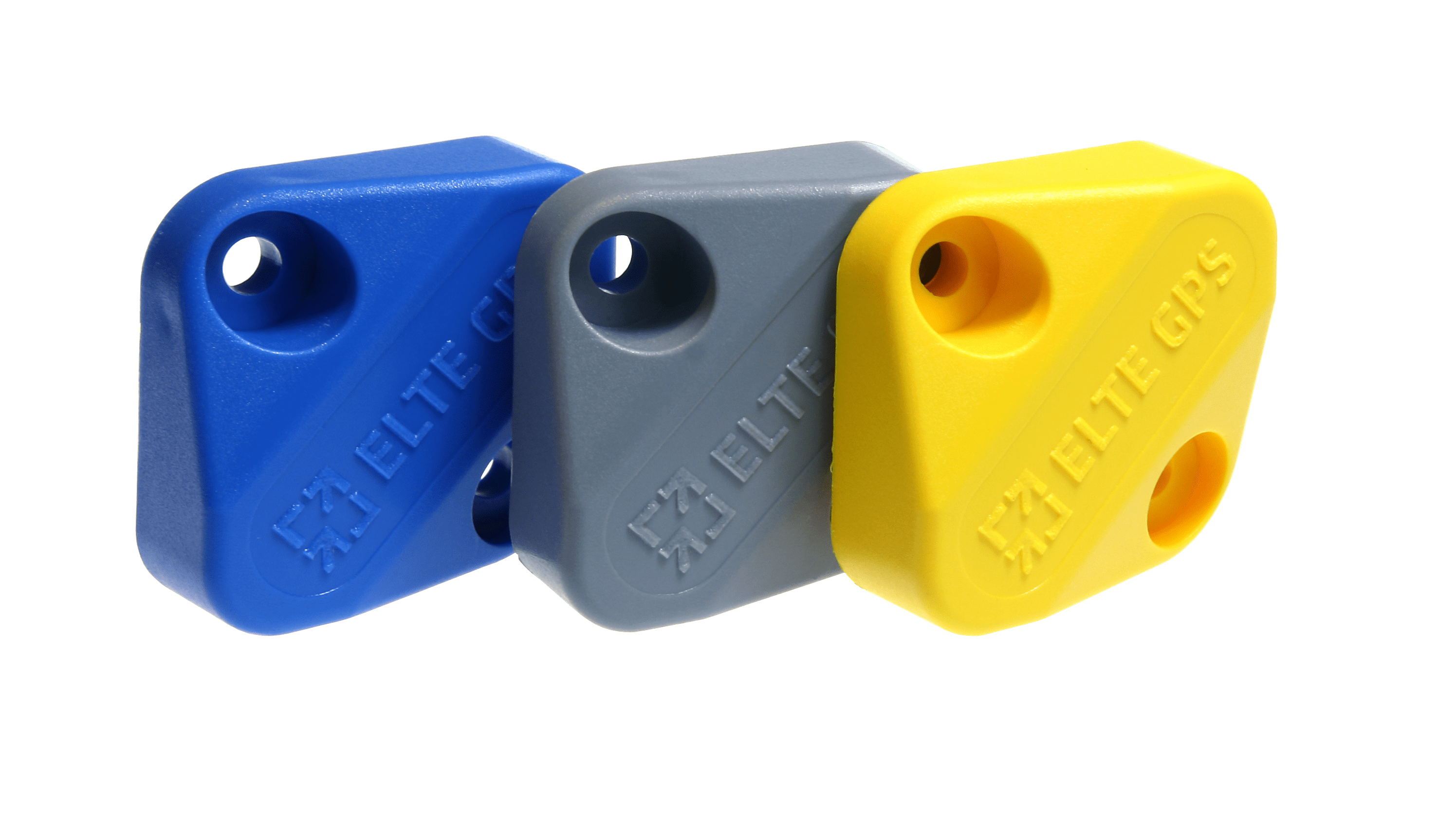

HDX (2)
